Progressive Cavity Pump

Progressive Cavity Pump
Precise Volumetric Dispensing for Low-Viscosity Media

Volumetric dispensing of low-viscosity media is achieved through a progressive cavity pump, ensuring gentle and precise material delivery. With a volume accuracy of approximately 1% (depending on the material), this technology is ideal for dispensing sensitive media such as UV materials, oils, and other fluids.



  • Pulsation-Free Delivery – The rotor moves smoothly within a rubber-coated stator, ensuring consistent and precise material flow.

  • High Dosing Accuracy – Provides constant and precise material dispensing.

  • Gentle Material Handling – Particularly suitable for UV materials due to low shear stress.

  • Reliable Process Stability – Ideal for applications requiring the highest dosing precision.



This technology ensures stable, drip-free, and precise dispensing, independent of viscosity fluctuations or environmental influences.



Progressive cavity pump Dispensing axiss

4150 Dispenser 0.14 ml

  • Drive via geared motor with Encoder

  • Flow rate 0.14 ml/revolution

  • Dosing speed: 0.01 - 0.14 ml/s

  • Dosing volume min.: 0.015 ml

  • Material inlet 1/4"

  • Material exit Luer Lock

  • Weight: about 1 kg

  • Max. viscosity: 60,000 mPas

  • Dimensions: approx. 334 × 62 × 56 mm

Progressive cavity pump Dispensing axiss

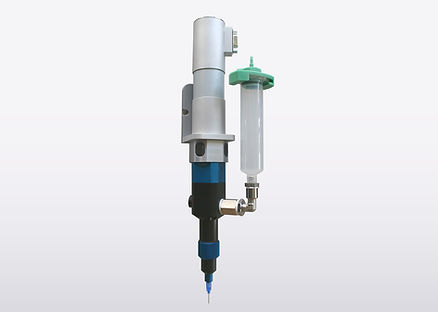

4160 Dispenser 0.53ml

  • Drive via geared motor with Encoder

  • Flow rate 0.53 ml/revolution

  • Dosing speed: 0.05 - 0.53 ml/s

  • Dosing volume min.: 0.06 ml

  • Material inlet 1/4"

  • Material exit Luer Lock

  • Weight: about 1kg

  • Max. viscosity: 60,000 mPas

  • Dimensions: approx. 334 × 62 × 56 mm

Dispenser 1,1ml 1K Dosierventil

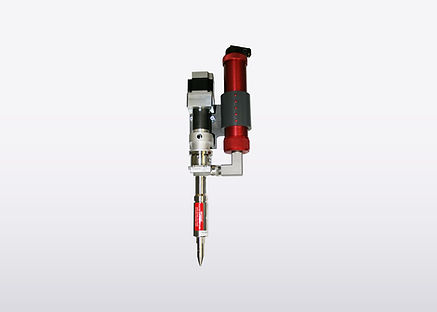

4020 Dispenser 1.1ml

  • Drive via geared motor with Encoder

  • Flow rate 1.1 ml/revolution

  • Dosing speed: 0.1 - 1.1 ml/s

  • Dosing volume min.: 0.3 ml

  • Material inlet 1/2"

  • Material outlet Luer Lock or 1/8"

  • Weight: about 3kg

  • Max. viscosity: 120,000 mPas

  • Dimensions: approx. 425 × 148 × 96 mm
